Spectro-UV AccuMAX Series Digital Radiometer/Photometers
1 in stock (can be backordered)

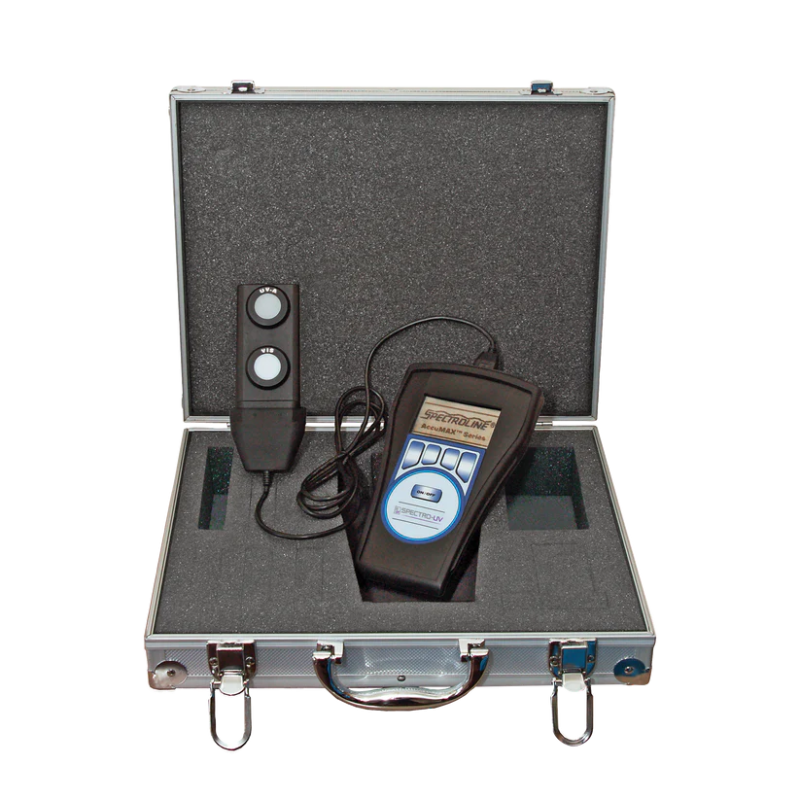

Advanced Digital Radiometer/Photometer Kit
Single detector with dual sensors measures both ultraviolet and visible light. Complies with ASTM specifications for MPI and FPI. Specially engineered for NDT applications.
- Microprocessor-controlled readout unit with dual-wavelength sensor detector
- Superior bandpass interference filter
- Choice of direct or USB connection between sensor detector and readout unit
- Excellent cosine response
- User-selectable, multilingual display settings. Choose from English, French, German and Spanish.
- Large, easy-to-read LCD screen
- Sealed sensor housing and USB connection with water-resistant adapter
The AccuMAX™ XRP-3000 radiometer/photometer kit uses a dualwavelength UV-A/VIS sensor detector to measure both ultraviolet and visible light. Featuring automatic zeroing, integration and signal hold, the unit provides accurate readouts for UV, visible irradiance or radiance. The LCD readout features ±0.2% linearity with the sensor sending the linearity correction data to the readout unit during initial power up. To ensure consistent results, sensors are designed with superior bandpass filters while optical stacks are assembled in Class 100 clean workstations. For precise spectral coverage, high-quality interference filters are used to resist degradation.
The rugged meter housing features a removable, rubber protective boot for better grip and to help prevent accidental breakage. It also provides superior protection against moisture contamination, shock and humidity. In addition, the XRP-3000 features a liquid- and water-resistant, sealed sensor housing with a special self-sealing ring to help eliminate light leakage.
The XRP-3000 meter’s microprocessor is the heart of its simplicity. Just four pressure-sensitive buttons on the readout unit’s membrane keypad offer an extensive array of advanced functions. For example, to subtract ambient light, the user need only press the “ZERO” button. This activates autozeroing, sets the value to 0 and displays relative readings of subsequent measurements. “HOLD” freezes the display thus obtained, while “INTG” displays the average UV intensity after integrating the UV energy over time. These functions and other user-selectable parameters are easily accessible through the software’s main and sub menus.
Multilingual Display Settings
The XRP-3000 features user-selectable, multilingual display settings.Choose from four languages: English, French, German and Spanish.
The XRP-3000 radiometer is carefully quality-controlled to ensure that each unit has up-to-date calibration and meets stringent measurement requirements. Housed in a durable polycarbonate case, it features dependable solid-state electro-optical circuitry for long, trouble-free operation.
The XRP-3000 is compact, lightweight and battery-operated for convenient use in the factory, field or any other location where measurements need to be taken. A slide-out panel allows for easy replacement of the unit’s 9-volt batteries.
|Dimensions||13 × 4.5 × 15 in|
