The Portable Pressure Sprayer is easy to use, light-weight pressure sprayer for spot application of penetrants, magnetic particles, developers and cleaners. It is easy to disassemble for cleaning, has a 1 quart capacity and a maximum pressure of 200 psi.

Meets the following specifications: AMS 2647D, ASME BPVC, ASTM E709, and ASTM E1417

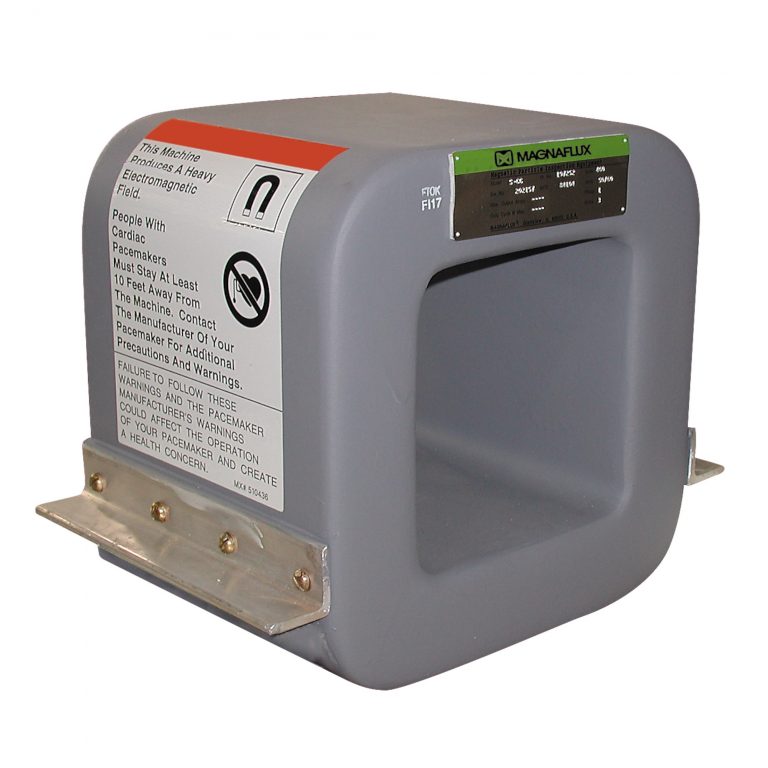

Magnaflux demagnetization units remove any residual magnetism remaining after conducting Magnetic Particle Inspection. Demagnetization of ferromagnetic parts and materials often requires a requisite to final finishing or to ready an item for its ultimate use. Industrial demagnetizing is not an easy task, unless an effective demagnetizing system is used. It is especially difficult when the magnetic field must be reduced to a very low level.
Compact in size and ruggedly built, Magnaflux demagnetizing equipment offers a fast and efficient method for demagnetizing a broad variety of part types and sizes.
7,500 Amp Turns
Typical Applications:
Demagnetizing parts that have been subjected to magnetic particle inspection
Removing residual magnetism in parts intended for use near magnetic instrumentation
Demagnetizing parts with bearing or journal surfaces
Demagnetizing parts after contact with magnetic chucks or lifting magnets
Features:
Compact table-top demagnetization system
Waterproof and oilproof by virtue of their plastic-impregnated glass coating
Compact size fits into most existing test or production systems
Base of the coil opening may be mounted flush with the work surface using the angle support supplied, making part insertion fast and easy on the operator
Available Voltages:  230, 460 V
Available Frequencies: 50 or 60 hertz, single phase power

Product Data Sheet

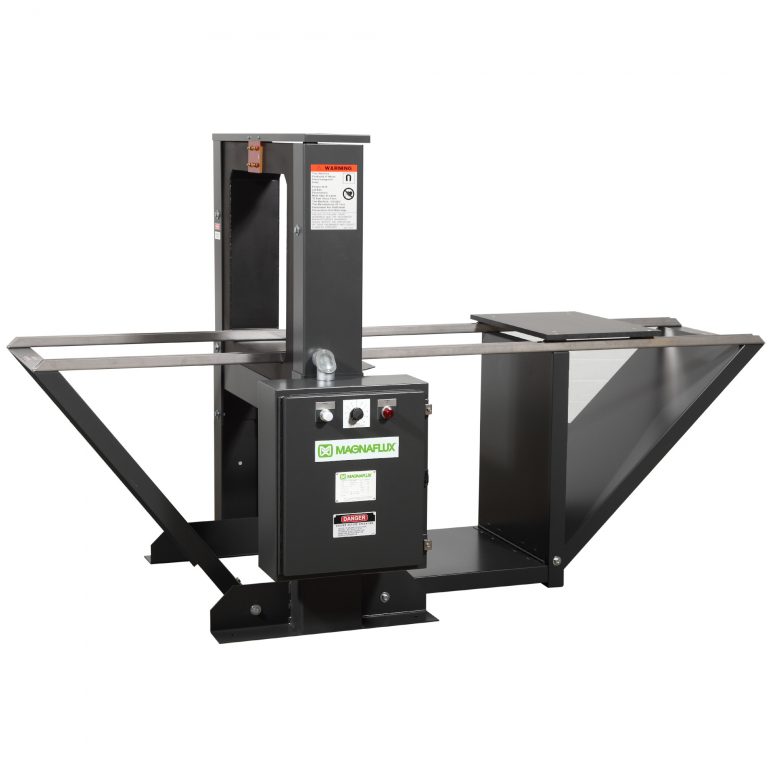

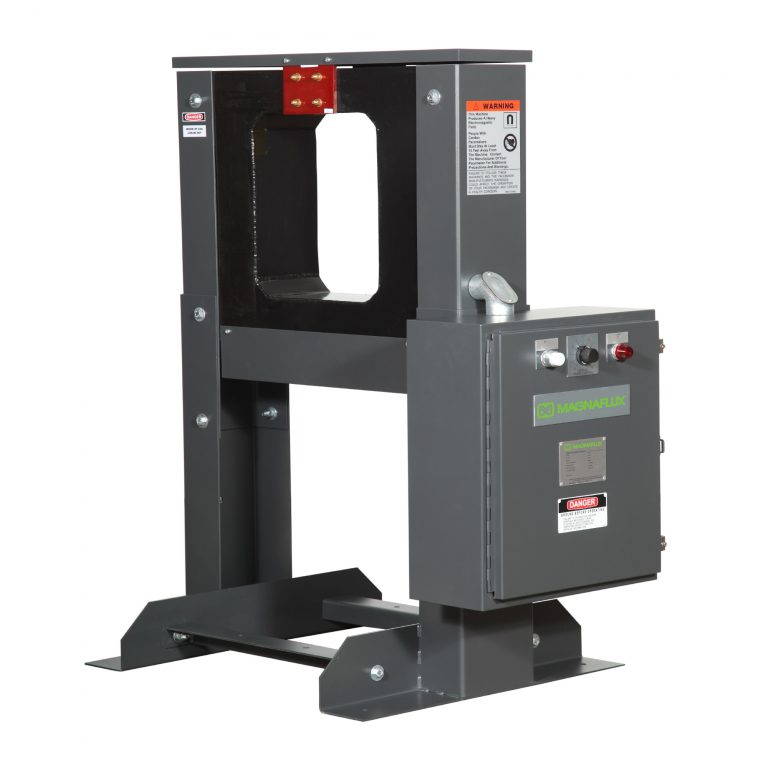

SB-Series Demagnetizer
8,000 Amp Turns
Stand alone, intermittent duty demagnetizers
Magnaflux demagnetization units remove any residual magnetism remaining after conducting Magnetic Particle Inspection. Demagnetization of ferromagnetic parts and materials often requires a requisite to final finishing or to ready an item for its ultimate use. Industrial demagnetizing is not an easy task, unless an effective demagnetizing system is used. It is especially difficult when the magnetic field must be reduced to a very low level.
Compact in size and ruggedly built, Magnaflux demagnetizing equipment offers a fast and efficient method for demagnetizing a broad variety of part types and sizes.
Typical Applications
Demagnetizing parts that have been subjected to magnetic particle inspection
Removing residual magnetism in parts intended for use near magnetic instrumentation
Demagnetizing parts with bearing or journal surfaces
Demagnetizing parts after contact with magnetic chucks or lifting magnets
Optional Features:
12,000 Amp Turns to increase the demagnetizing capability by 50%
Track and Carriage slides parts easily through the demagnetizer with less part handling (reduces the inside dimensions slightly to 14 x 14 in)
Available Voltages: 380, 415, 460, 575 V
Available Frequencies: 50 or 60 Hz

Product Data Sheet

NDT cleaner and remover for pre-cleaning before non-destructive testing and for removing excess surface penetrant.

NDT Cleaner & Remover

SKC-S is an NDT-approved solvent cleaner/remover for pre-cleaning before non-destructive testing and for removing excess surface penetrant from an inspection area before applying developer during liquid penetrant testing.

This non-halogenated solvent remover can be used on a wide range of substrates to remove oils, greases and other contaminants. SKC-S dries quickly without leaving a residue, and meets the low-residue requirements for NDT and aerospace penetrant testing.

SKC-S Product Data Sheet
SKC-S Liquid Safety Data Sheet
SKC-S Aerosol Safety Data Sheet

Solvent-based developer for Type 1 Form d or Type 2 Form e penetrant testing, QPL SAE AMS 2644.

Solvent Based Developer

A bright white, non-aqueous developer, SKD-S2 creates an opaque white background for high-contrast penetrant testing and quickly draws penetrant out to create stronger, clearer indications for better inspection reliability and sensitivity.

Noted for its compatibility with special alloys, such as stainless steel, aluminum, magnesium and titanium, SKD-S2 is non-halogenated, can be used with Type 1 & Type 2 penetrants. This solvent-based developer meets aerospace and nuclear industry requirements, and complies with all major NDT specifications, including ISO 3452.

SKD-S2 helps speed up the inspection process by going on easily, drying quickly, promoting faster indication formation and minimizing post-inspection cleaning. It is ideal for machine shops, weld testing and field applications.

SKD-S2 is listed on the QPL SAE AMS 2644 Qualified Product List and is approved by numerous Aerospace Primes including, Boeing, GE and Honeywell.

SKD-S2 Product Data Sheet
SKD-S2 Aerosol Safety Data Sheet
SKD-S2 Liquid Safety Data Sheet
