 | Echogel® 20 is an economical, basic-use couplant in medium-thick gel viscosity for ultrasonic inspections, like flaw detection/sizing and thickness gauging, where salt cake or metal corrosion salts are present. It provides good corrosion inhibition and resists viscosity breakdown on salt-caked boilers and other corroded materials. | ||||||||||||||||||||||||||||||||||||
 | The EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections. The EV6000 features a uniform beam with no hot-spots and a 9 in / 23 cm wide beam, 33% wider than the next widest hand-held UV lamp in the industry. Custom-designed optics provide intense and even UV-A coverage of UV-A to easily identify indications, and an integrated filter ensures minimal visible light emission to improve inspection reliability. The EV6000 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile. Each unit is shipped with a manufacturer’s certificate of conformance which meets or exceeds all current specifications for use with fluorescent liquid penetrant and magnetic particle testing.
The handheld EV6000 is also available as inspection kits for fluorescent penetrant testing or fluorescent magnetic particle inspections and come with Magnaflux aerosol consumables:
| ||||||||||||||||||||||||||||||||||||
 | The EV6500 is a hand-held, portable LED UV lamp with built-in white light LEDs for non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections. Designed with broad-beam profile for in-line and hand-held use, the EV6500 will decrease inspection time by improving indication visibility with 7,000 μW/cm2 high intensity UV-A illumination and the widest coverage area in its class. To improve NDT inspection flexibility, the EV6500 has easy-on visible light LEDs for visible flaw location, eliminating the need for a separate flashlight. The white light LEDs provide a large, concentrated flood of visible light of over 150 ft-candles. | ||||||||||||||||||||||||||||||||||||
 | Mobile Power Packs Electromagnetic Current Generators for AC or HWDC MagnetizationThe M-Series mobile power pack portable current generators facilitate testing of large and abnormally heavy parts with magnetic particle inspection. Magnaflux understands some parts cannot be moved so the magnetizing station needs to be brought to the part. The M-Series offers a solution by providing an adaptable mobile unit. These units feature AC or Half Wave DC output. M-Series magnetic power packs are available in three configurations: M-2030, M-2040 and M-2060. Comparison
Benefits
Features
M-2030
M-2040
M-2060
| ||||||||||||||||||||||||||||||||||||

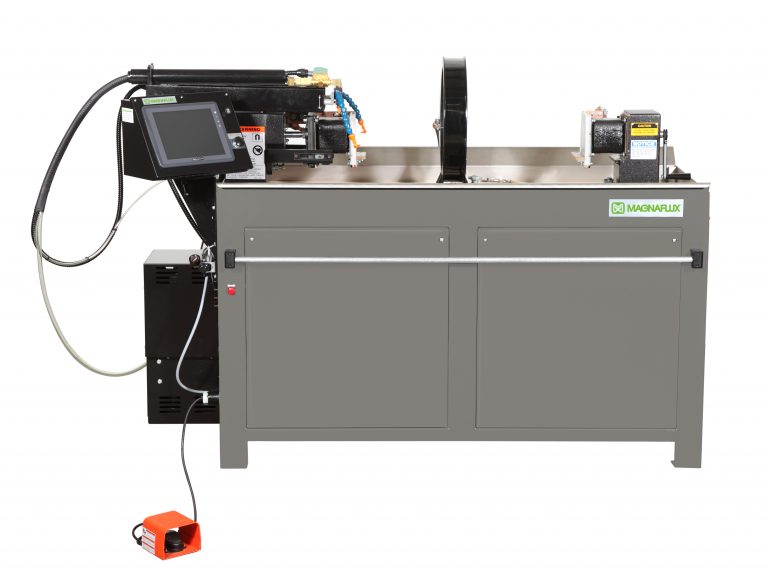

 | Multi-Directional Magnetic Wet Benches for AC, HWDC or 1-Phase FWDC MagnetizationThe MD-Series multi-directional magnetic bench offers Alternating Current, Half Wave Direct Current and 1-phase Full Wave Direct Current for time-saving multidirectional magnetization which can find defects in all orientations with one mag-cycle. The two outputs (contact and Flux Flow coil) each offer AC, HWDC or 1-Phase FWDC, and are independently adjustable to balance the magnet field intensity. MD-Series magnetic benches are available in three models: Key Properties MD-2030 MD-2060 MD3-2060 *See Product Data Sheet for additional configuration options MD-2030_Product-Data-Sheet_English MD-2060_Product-Data-Sheet_English MD3-2060_Product-Data-Sheet_English
BenefitsMaximize part throughput
Advanced process control
Real-world dependability for minimal downtime
Easy to use and maintain
Features
| ||||||||||||||||||||||||||||||||||||
 | ZA-1227 systems are compact fluorescent penetrant inspection systems for batch and low volume inspection of small to medium size parts, including aerospace fasteners, automotive parts and surgical implant inspection. Three different system configurations are available:
ZA-1227-Water-Wash-Fluorescent-Penetrant-Inspection-System_PDS Method A – Water Washable
Dimensions 56 x 28 x 36 in / 142 x 71 x 91 cm
Stations (1) Penetrant
(2) Rinse
(3) Dryer
(4) Developer
(5) Inspection
ZA-1227-Post-Emulsified-Lipophilic-Penetrant-Inspection-System_PDS Method B – Post Emulsifiable, Lipophilic
Dimensions 70 x 28 x 36 in / 177.8 x 71.1 x 91.4 cm
Stations (1) Penetrant
(2) Emulsifier
(3) Rinse
(4) Dryer
(5) Developer
(6) Inspection
Features
SpecificationsElectrical Requirements: 115V, 60Hz, Single Phase Tank Size: 12.9 x 27.6 x 16 in / 32.8 x 70.2 x 40.6 cm Tank Capacity: 10 gal / 38.7 L Dryer: Thermostatically controlled UV Lamp: EV6000 hand-held LED black light | ||||||||||||||||||||||||||||||||||||
| | ZA-1633 systems are stand-alone fluorescent penetrant inspection systems for light volume inspection of small to medium size parts, including aerospace fasteners, automotive parts and surgical implant inspection. Three different system configurations are available:
ZA-1633-Water-Wash-Penetrant-Inspection-System_PDS Method A – Water Washable
Dimensions 56 x 28 x 36 in / 142 x 71 x 91 cm
Stations (1) Penetrant
(2) Drain
(3) Rinse
(4) Dryer
(5) Developer
(6) Inspection
ZA-1633-Post-Emulsified-Lipophilic-Penetrant-Inspection-System_PDS Method B – Post Emulsifiable, Lipophilic
Dimensions 70 x 28 x 36 in / 177.8 x 71.1 x 91.4 cm
Stations (1) Penetrant
(2) Drain #1
(3) Emulsifier
(4) Rinse
(5) Drain #2
(6) Dryer
(7) Developer
(8) Inspection
Features
SpecificationsElectrical Requirements: 230V or 460V, 60Hz, ingle Phase Tank Size: 15.8 x 33 x 14.8 in / 40.1 x 83.8 x 37.6 cm Tank Capacity: 27 gal / 102 L Dryer: Digitally calibrated temperature control UV Lamp: EV6000 hand-held LED black light | ||||||||||||||||||||||||||||||||||||

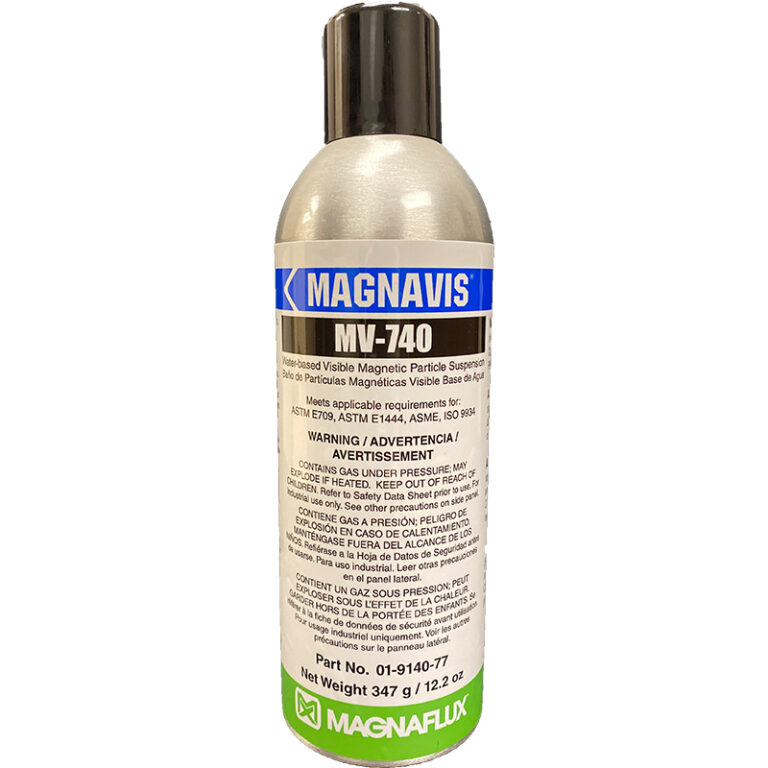

 | MV-740Water-Based Visible Magnetic Particle SuspensionA highly sensitive water-based magnetic particle fluid for non-fluorescent (visible) wet method magnetic particle testing to locate fine and medium discontinuities on finished parts. MV-740 provides clear, strong indications due to the heavy buildup of the highly magnetic particles. The product is ready-to-use, so no dilution is required. MV-740 is often used with WCP-2 white contrast paint to improve contrast and inspection sensitivity. BenefitsEco-friendly profile
Maximize Application Versatility & Indication Detection
Features
| ||||||||||||||||||||||||||||||||||||
 | P-SeriesEconomical Power Pack Magnetic Current GeneratorsP-Series portable power packs are convenient and economical inspection units that are used in a wide range of magnetic particle inspection applications that require only moderate power. These portable electromagntic current generators are ideal for inspecting large or heavy parts, in-service mobile equipment or job-site weld testing with magnetic particle inspection NDT method. P-Series power packs are available in two configurations P-70 and P-1500 to meet a variety of mag particle inspection needs. Click on the tabs below for more details on these configurations. Comparison
* Rated with 2 sets of 15 ft / 4.6 m of 4/0 cable Benefits
Part Numbers
| ||||||||||||||||||||||||||||||||||||
 | The Pie Gauge is a tool for quickly verifying the direction of magnetic flux on a surface. It is made from eight ferrous segments, braised into a single piece, providing a star pattern of nonferrous discontinuities. Typically used with dry powders for yoke inspection, the Pie Gauge can be held at any angle and will generate indications perpendicular to the direction of the magnetic flux. A similar test gauge, the Berthold Penetrameter, uses four instead of eight ferrous sections and is commonly used in Europe. | ||||||||||||||||||||||||||||||||||||
