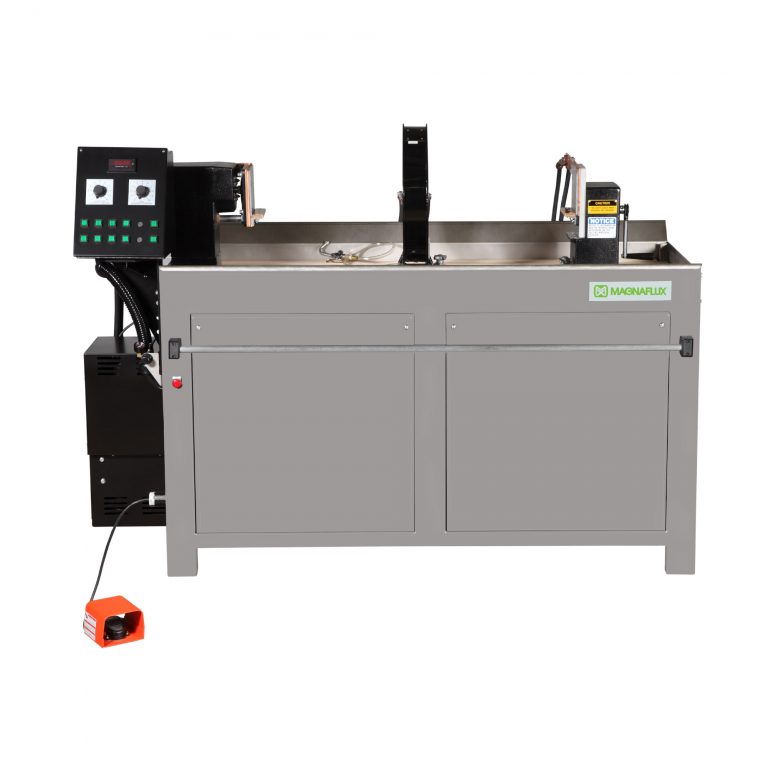

 | Wet bench machines for AC/DC magnetization with circular and longitudinal magnetic field outputs Magnetic Wet Benches with AC and DC MagnetizationThe AD-Series magnetic benches provide 4,000 amps of Alternating Current and 5,000 amps of Direct Current magnetization for finding surface and sub-surface defects during wet method magnetic particle inspection. The two outputs are independently adjustable to set each magnetic field, circular or longitudinal. AD-Series benches are available in two models: AD-2045 and ADH-2045. Standard Features 5% duty cycle of 0.5 seconds on, 10 seconds off at maximum output Allen-Bradley PLC Simple touch-screen operator interface External pump system for particle bath agitation, circulation and application Integrated decaying-AC demagnetization with 1-touch control Low-voltage output minimizes electrical exposure for operator safety Adjustable mag shot time from 0.5 to 2 seconds Automatic Double-Mag Shot with 1-touch control Mag-shot-activating front push bar with 1-touch control to enable/disable this feature Large, easy-to-read digital ammeter confirms amperage sent through the part Current assurance indicator light confirms magnetizing current delivery Solid state circuitry increases lifetime and performance of machinery. Key Properties AD-2045 ADH-2045 *See Product Data Sheet for additional configuration options BenefitsFaster part processing
Real-world dependability for minimal downtime
Easy to use and maintain
Features
| |
 | AX-52 is a water-soluble corrosion inhibitor developed specifically for water-based magnetic particle suspensions. It provides excellent corrosion inhibition to protect parts and equipment from rusting. When using water as a magnetic particle vehicle, metal parts can be protected from corrosion by using AX-52, which comes as a clear to amber liquid. AX-52 dissolves quickly in water, and can be used in all wet method water baths to improve the corrosion protection. | |
 | Petroleum suspension vehicle for wet mag particle testing provides excellent particle mobility, good suspension stability and enhanced corrosion protection. NDT-Approved Petroleum Base Suspension VehicleCarrier II is a high-purity NDT-approved suspension vehicle developed specifically for wet method magnetic particle testing. This petroleum distillate carrier oil provides excellent particle mobility, good suspension stability and enhanced corrosion protection for reliable, spec-compliant mag particle inspections. Carrier II is made with highly refined petroleum oil with virtually no odor for improved operator comfort, while the high flash point and low toxicity reduce EHS concerns. | |
 | This line of centrifuge tubes is to help you easily and accurately measure the magnetic particle concentration of your mag particle bath as part of your regular system performance checks for ASTM E709, ASTM E1444 or ASME BPVC. | |

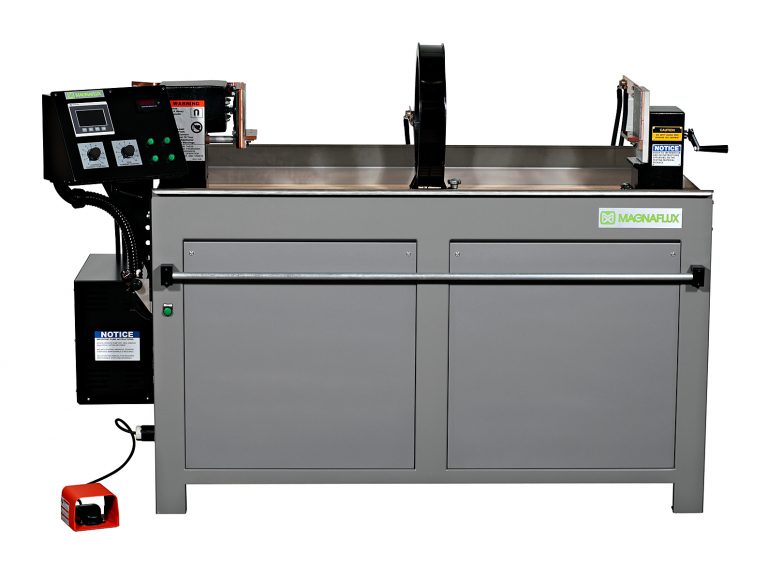

 | Magnetic Wet Benches with 3-Phase FWDC CapabilityThe D-Series is one of our most powerful wet magnetic benches. Providing 3-phase Full Wave Direct Current, this MPI equipment offers maximum magnetization for finding surface and sub-surface defects with clearer indications while using minimal power. The two outputs are independently adjustable to set each magnetic field, circular or longitudinal. D-Series magnetic benches are available in two models:
Key Properties D-2060 Magnetizing Current Capacity at Contacts FWDC 6,000 (amps) D-2100 Magnetizing Current Capacity at Contacts FWDC 10,000 (amps) * See Product Data Sheet for additional configuration options D-2060_Product-Data-Sheet_English D-2100_Product-Data-Sheet_English
BenefitsMeets aerospace specifications
Faster part processing
Real-world dependability for minimal downtime
Easy to use and maintain
Features
| |
 | A foaming, all-purpose neutral cleaning solution meant for a broad spectrum of soils, Daraclean® 212 is formulated with a blend of surfactants, emulsifiers, and corrosion inhibitors, and is safe to use on most metals, while being non-aggressive with aluminum and titanium alloys. It boasts excellent soil-rejecting qualities, suspends soils and is designed to be filtered and skimmed to extend the cleaner’s life beyond that of emulsion-type cleaners. Daraclean 212 is designed for immersion, ultrasonic and steam methods of use, in concentrations up to 25 percent. Meets or exceeds most aerospace industry specifications for aqueous cleaners, and comes in 5 and 55 gallon containers. Foaming action provides superior cleaning of blind holes and complex structures, but is not suitable for spray applications. No phosphates or silicates mean that Daraclean 212 meets environmental requirements in critical applications. Daraclean 212 is a high-performance cleaner for aluminum, anodized aluminum, brass, bronze, carbon steel, cast iron, nickel and superalloys, plated metals, stainless steel and titanium, and is also can clean copper. It works best on water soluble oils, medium and heavy weight oils, machining fluids, synthetic coolants, and buffing compounds. | |
 | Daraclean® 235 is a low-foaming, neutral cleaning solution for general use on a broad spectrum of soils and safe to use on most metals, non-aggressive on aluminum, brass, copper, titanium and zinc alloys. Soil-rejecting properties suspend soils in the solution and can be filtered and skimmed to extend the life of the cleaner much further than emulsion cleaners. Designed for immersion, spray and ultrasonic and steam applications in concentrations up to 30 percent. Formulated for use on exotic materials and specialty plating, including LOX system components. It is a neutral pH cleaner, complete with defoamer, and has no silicates or phosphates. Use Daraclean 235 on aluminum, anodized aluminum, brass and bronze, carbon steel, stainless steel, cast iron, copper, nickel, superalloys, plated metals, titanium and zinc alloys. Will remove water-soluble oils, machining fluid, synthetic coolants, medium weight and lube oils, buffing compounds and motor oils. | |
 | Daraclean® 236 is a low-foaming, all-purpose neutral cleaner for a wide range of soils and safe to use on most metals and removes tarnish from brass, bronze, and copper alloys. Excellent soil-rejecting properties keep soils suspended until solids settle and oil and grease coalesce and float, to be removed by filtering or skimming, which extends the life of the cleaner much further than emulsion-type solutions. Daraclean 236 is designed to be used in immersion, ultrasonic, spray and steam processes in concentrations up to 30 percent. It is a neutral pH cleaner, complete with defoamer, and has no silicates or phosphates, and is also highly tolerant of hard water. Daraclean 236 is compliant with aerospace specifications and removes oils, machining fluid, synthetic coolants, buffing compounds, railroad and axle grease, and can also be used on sealants and heavy oils. | |
 | A low-foaming, all-purpose alkaline cleaning solution, Daraclean® 282 is an excellent cleaner for a broad spectrum of soils. This multi-purpose industrial cleaner has excellent soil-rejecting properties and suspends soils until they settle and can be removed by filtering or skimming, for a cleaning bath which lasts much longer than other water-based cleaners. Daraclean 282 can be used in concentrations up to 25 percent (20 percent for CARB compliance) in immersion, ultrasonic, spray and steam applications. Moderately alkaline, with low foam levels, Daraclean 282 contains inhibitors to prevent metal corrosion, and has no phosphates and is hard water tolerant. Daraclean 282 meets all major aerospace specifications for NDT cleaning, is safe to use on most metals and is non-aggressive on aluminum, magnesium and titanium alloys. | |
 | Daraclean® 283 is a low-foaming, powerful alkaline cleaning solution formulated for use on a broad spectrum of soils, composed of surfactants, emulsifiers, and corrosion inhibitors. It is safe to use on most metals and is non-aggressive towards titanium alloys. Daraclean 283 has excellent soil rejecting properties that remove soils, then allow solids to settle and lighter grease droplets to float. The solution can be filtered and skimmed to extend its life much further than emulsion-type cleaners. Daraclean 283 is designed for immersion, spray and ultrasonic applications, in concentrations up to 25 percent. It is tested and certified to meet or exceed aerospace specifications for aqueous alkaline cleaners. High alkaline chemistry is aggressive on soils, and low foam levels can be used in spray applications. Daraclean 283 contains no phosphates and is highly tolerant of hard water, and its inhibitors prevent corrosion on metals. Daraclean 283 is specifically designed for carbon steel, cast iron, nickel and superalloys, stainless steel and titanium, and it also works well on brass and bronze, copper, plated metals, and can be used on aluminum. It is effective on water soluble oils, machining fluid, synthetic coolants, and medium and heavy weight oils, lube oils, buffing compounds. It will also work on carbonized soils. Daraclean 283 comes in 55-gallon containers. |
