 | WA-2B is a general-purpose water-conditioning powder to enhance surface wetting and magnetic particle dispersion stability in water-based magnetic particle suspensions. Its unique blend of wetting agents, corrosion inhibitors and anti-forming agents eliminates the need for additional water conditioning agents. A white granular powder that is added to water baths in wet method magnetic particle testing with no further bath treatment required. WA-2B features good surface wetting and particle dispersion, and will not cake in storage. WA-2B is added to the water bath and stirred until dissolved before the magnetic particles are added. | |
 | White Contrast PaintA bright white, opaque NDT contrast paint, WCP-2 provides a high contrast background to improve probability of detection and sensitivity during visible magnetic particle inspections. This fast drying paint aerosol sprays on evenly, without flaking, before inspection so when non-florescent / colored magnetic particles are applied, the indications appear clearly against the opaque white background. WCP-2 can be used with all types of colored and visible mag particles, including 7HF or 7C Black wet method particles, and #2 Yellow or #8A Red dry method magnetic powders. | |
 | ||
 | ||

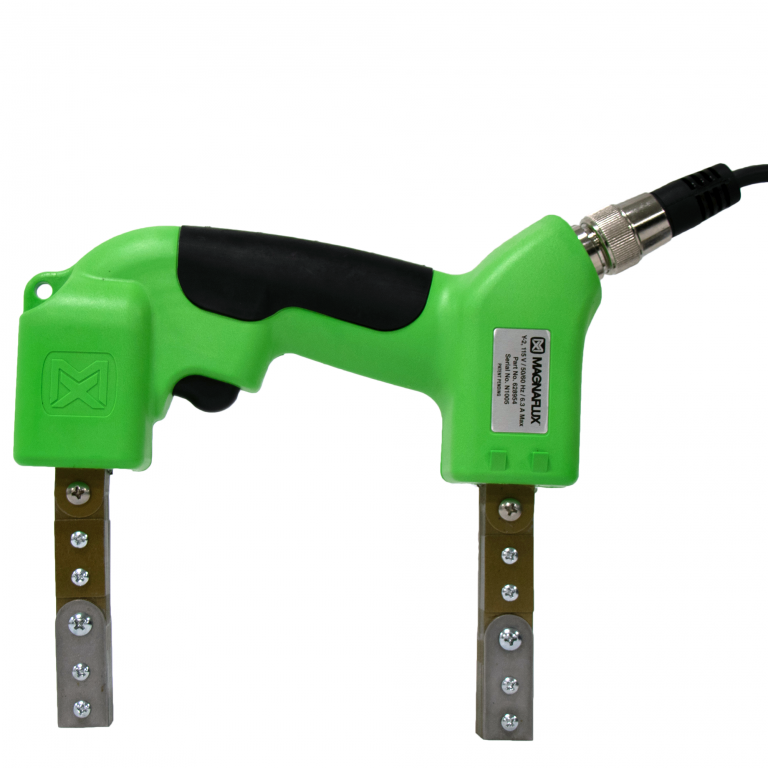

 | The Y-2 is an AC electromagnetic yoke, ergonomically designed to improve productivity and reduce operator arm and wrist fatigue. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing. Lightweight with an ergonomic grip and trigger, the Y-2 is designed for the rugged demands of field inspection. Featuring a field swappable cord and isolated trigger switch; the Y-2 is easily serviceable because a severed cord should not stop a job from getting done. A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including #1 Gray and #8A Red magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case. | |
 | The Y-7 is a durable, high-strength AC/DC magnetic yoke designed to detect surface and sub-surface indications in the most rugged applications. Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the Y-7 is ideal for inspection of welds and other remote testing. Solid-state controls allow the operator to use AC magnetic fields for surface indications or DC magnetic fields for sub-surface indications to meet all inspection needs. The Y-7 is also available in the Y-7 MV Kit which comes with a Y-7 yoke, #1 Gray and #8A Red magnetic powders, a paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case. | |
 | ZAF-2 is an excellent general-purpose defoaming additive to eliminate and prevent foaming in water-based magnetic particle suspensions, aqueous penetrant developer baths, hydrophilic penetrant remover baths and aqueous cleaning solutions. A few drops of ZAF-2 are enough to eliminate foaming in most water-based solutions. ZAF-2 can be sprinkled onto the surfaces of baths to eliminate foaming. It is not intended to remove fine lather which may occur in recirculating baths where there is excessive air intake in the recirculation pump. | |
 | Lipophilic emulsifier for Method B liquid penetrant testing, QPL SAE AMS 2644. Lipophilic EmulsifierA Method B lipophilic emulsifier, ZE-4E diffuses into the penetrant to clear the penetrant from the surface of the part being inspected. It is rinsed from the part by water, carrying penetrant off the part surface. Designed to be used with post-emulsifiable penetrants Level 2 ZL-2C, Level 3 ZL-27A or Level 4 ZL-37. Benefits include low volatility and a high flash point, so ZE-4E can be used in open immersion tanks. ZE-4E is listed on the QPL SAE AMS 2644 Qualified Product List | |
 | Level 1/2 water washable fluorescent penetrant for Type 1, Method A and Method C liquid penetrant testing, QPL SAE AMS 2644. Level 1/2 Water Washable Fluorescent PenetrantZL-15B water washable penetrant is a low-sensitivity penetrant that features excellent wash ability. It is used to find open surface flaws such as cracks and porosity in seams, laps, cold shuts, and laminations on castings, forgings, extrusions, and parts with rough surfaces. It can be developed with ZP-4B dry powder developer, with ZP-5B water suspendible developer in an agitated tank or with ZP-9F non-aqueous developer. With a UV-A light source, like the EV6000, indications will appear as a bright green-yellow fluorescence. ZL-15B is listed on the QPL SAE AMS 2644 Qualified Product List. | |
 | Level 1 water washable fluorescent penetrant for Type 1, Method A and Method C liquid penetrant testing, QPL SAE AMS 2644 and Pratt & Whitney approved. Level 1 Water Washable Fluorescent PenetrantA water-removable Level 1 penetrant, ZL-19 is designed for use on rough or un-machined surfaces such as castings and forgings to find larger discontinuities in non-safety critical components. It is ideal for inspecting automotive and general industrial components such as engine cylinder blocks, power train components, rocker arms, pistons, steering knuckles, etc. ZL-19 washes off parts with ease, leaving less background for clearer indications – even on rough surfaces. The quick rinsing reduces water usage in the inspection process, and the rinse water is easily treatable for simpler disposal. This economical fluorescent penetrant helps users reduce their over-all cost per part by reducing penetrant loss through drag-out, speeding up the washing and inspection process, and cutting rinse water costs. ZL-19 can be used with ZP-4B dry powder developer, with ZP-5B water suspendible developer in an agitated tank or with ZP-9F non-aqueous developer. With a UV-A light source, indications will appear as a bright green-yellow fluorescence. ZL-19 is listed on the QPL SAE AMS 2644 Qualified Product List and is approved for use by Pratt & Whitney. |
