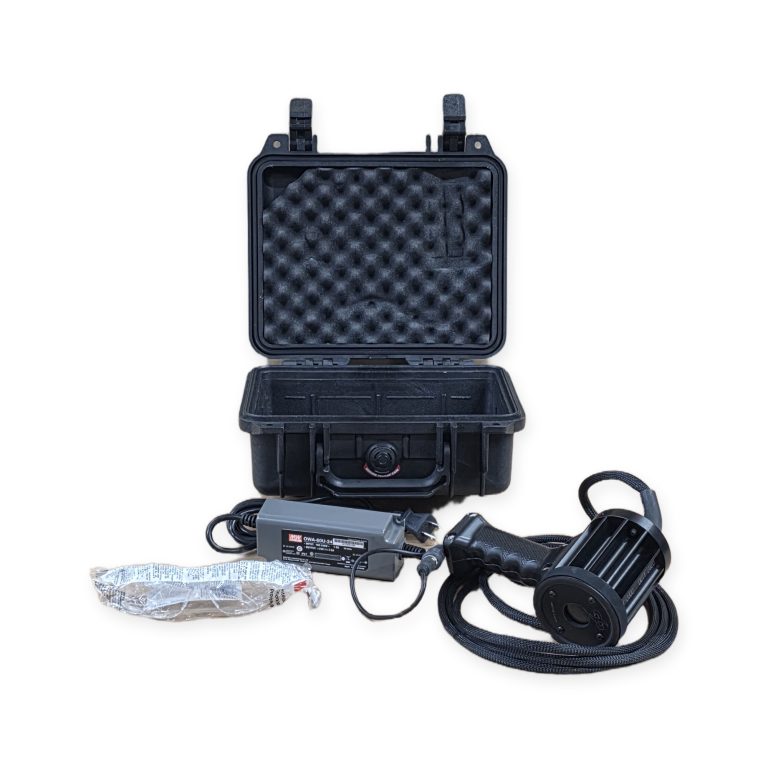

The Profusion XW Lamp has an X-tra Wide UV-A beam designed for high power applications where package size matters. This fan cooled package is IP-68 rated. The engineered fin housing allows for maximum heat transfer in the harshest environments.

Made of high impact polyethylene with ABS handle and knob. Rope reel is 14” in diameter and capable of holding 200ft. of rope.

LEMO or BNC variations

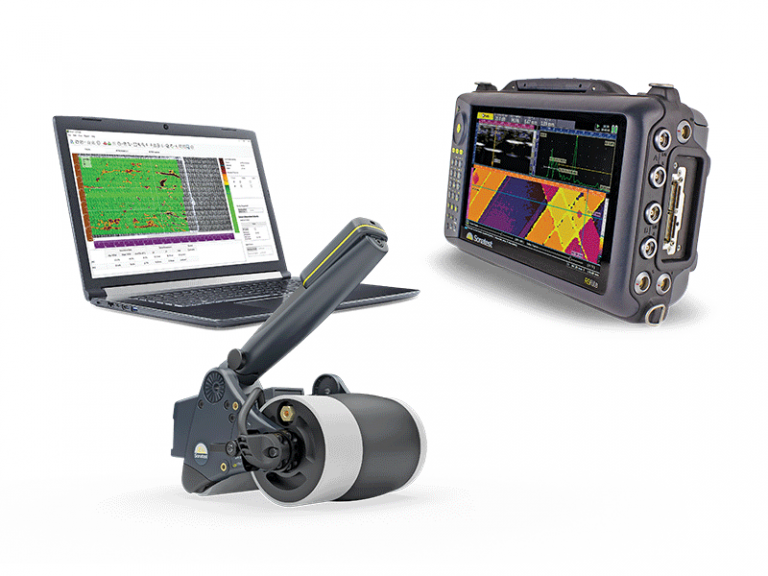

NEW Sonatest RSflite Portable Inspection Solution for the Composite Industry

Boosted by impressive recording speed, the RSflite lightweight battery operated equipment is two times faster than the previous generation. Handling small to large probes and with almost no file size limitation, it can cover rapidly large surfaces and spare precious inspection hours down the production line or at the maintenance site. The RSflite responsive touchscreen user interface is also specifically optimised to operate linear scan, saving significant training costs and time often associated with unnecessary advanced Phased Array ultrasonic (PAUT) concepts.

Ultrasonic NDT has helped engineers inspect all sorts of composite materials for years. Whether it be traditional aluminium laminates or today’s more complex carbon fibre-based composites; the fast Sonatest RSflite linear scanning technology – also called electronic scanning – offers the ability to acoustically see through these parts, and create high-resolution inspection maps. Using the UTmap unique Tiled-Scan (T-Scan) stitching capability, comprehensive volumetric integrity reports can be generated and supported by imaging reports that are as easy to interpret as traditional X-Ray, without the hazard mitigation plan.

Seifert ERESCO MF4 portable industrial X-ray generators are designed for reliability in some of the world’s toughest conditions. The user interface features graphic visualization and menu driven operation. The robust construction of the control and the tube heads make them suitable for operation in rugged environments. Low power consumption reduces energy cost and makes operation with portable power supplies easier. Special power electronics allow for an alternative operation in the field and integration into crawlers.

The Seifert ERESCO MF4 generates a high X-ray dose which allows the shortest exposure time that results in higher productivity by using modern compact electronics to minimize weight and provide a high power output with extremely low ripple, together with a sturdy metal ceramic X-ray tube. Latest Seifert ERESCO 300 MF4-R tube e.g. brings geometric magnification and exposure time reduction to film based and digital radiography based weld inspection.

Product Features

Directional Exposure

• 200 MF4-R with 10-200 kV DC max. tube voltage, 0.5-10 mA max. tube current, 3 mA tube current at 200kV, 1 mm focal spot size (EN12543), continous rating max. 600 W
• 300 MF4-R with 10-300 kV DC max. tube voltage, 0.5-6 mA max. tube current, 3 mA tube current at 300kV, 1 mm focal spot size (EN12543), continous rating max. 900 W
• 42 MF4 with 5-200 kV DC max. tube voltage, 0.510 mA max. tube current, 4.5 mA tube current at 200kV, 3 mm focal spot size (EN12543), continous rating max. 900 W
• 65 MF4 with 5-300 kV DC max. tube voltage, 0.5-6 mA max. tube current, 3 mA tube current at 300kV, 3 mm focal spot size (EN12543), continous rating max. 900 W

Panoramic exposure

• 32 MF4-C with 5-200 kV DC max. tube voltage, 0.5-10 mA max. tube current, 3 mA tube current at 200kV, 0.4×4.0 mm focal spot size, continous rating max. 600 W
• 52 MF4-CL with 5-300 kV DC max. tube voltage, 0.5-6 mA max. tube current, 2 mA tube current at 300kV, 0.5×5.5 mm focal spot size, continous rating max. 600 W

View the full specifications and compare Seifert ERESCO MF4 portable X-ray generator models to suit your applications including accessories

Highest power output, with best image definition in its class.

CP-2 White Contrast Paint provides a high contrast background for interpreting magnetic particle indications. By applying white, CP-2 contrast paint to a part before magnetic particle inspection, indications will show more clearly against a white background and be easier to interpret. CP-2 enhances the visibility of black or red-brown magnetic particles under white light conditions. CP-2 is very useful when the color of the surface being inspected approaches the color of the dark magnetic particles.

Comes in a case of 9 – 16oz Aerosol Cans
