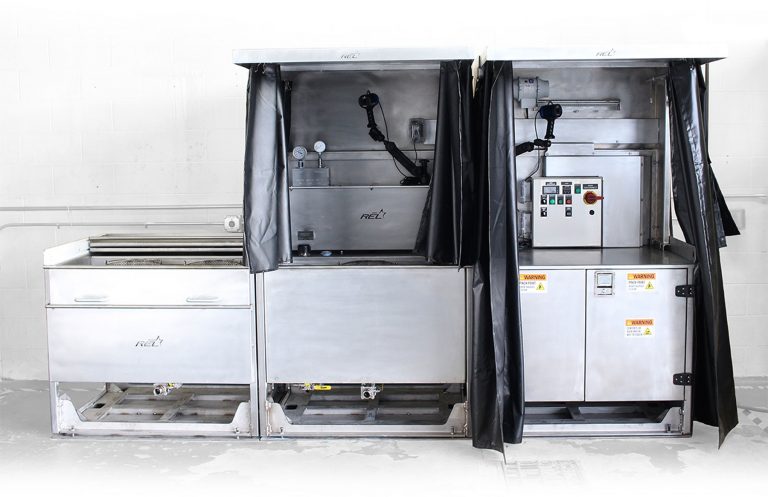

 | The Glo-Black Model MLF250 Fluorescent Penetrant Inspection (FPI) system was specifically engineered, manufactured, and tested to support our Warfighters in Theater! It is now available to be purchased by any branch of the armed forces with NSN# 6635-01-663-6127 and industry. This highly engineered FPI system has the highest space efficiency. (part volume per footprint area ratio PV/FA=1.12). The MLF250 Method D configuration can process shafts up to 4 feet long in a 11-foot long footprint! The MLF250 was tested to comply with MIL-STD-810G standards for: Impact, Vibration, Acceleration, and Extreme Environmental Testing. The MLF250 system can also be configured for ANY and MULTIPLE FPI methods. This means the MLF250 is the Toughest, most space efficient, and most conformable FPI system on the planet earth! FPI Model MLF 250 Attributes:
Tested Safe:
| |

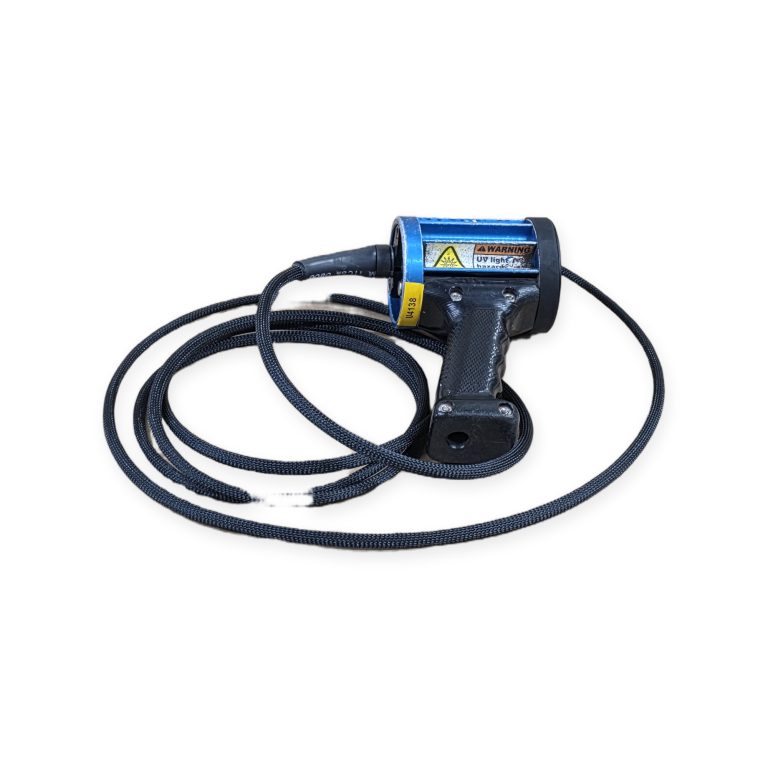

 | C4 Magnum Glo-Black LED UV-A Inspection LampThe REL C4 Magnum Glo-Black LED UV-A inspection lamp utilizes the latest in safe high output UV-A LED technology. This Glo-Black LED UV-A inspection lamp is a highly maneuverable lightweight solution that maximizes operator safety and time on task. The C4 Magnum contains 4 high flux-UV LED emitters that have a built in static-electric discharge circuit to allow the light to perform in all environments regardless of ambient conditions. The C4 Magnum is designed for all intensity requirements of Fluorescent Penetrant Inspection (FPI) and Magnetic Particle Inspection (MPI). The C4 Magnum provides a 9-inch diameter of UV-A intensity above 1000 μW/cm2 at 15 inches. The integral filter in the C4 Magnum limits the visible light to 20 lux and 5 lux at 36 inches. The C4 Magnum Glo-Black LED UV-A inspection lamp is sealed and cooled with an engineered finned housing. It is manufactured from a military grade aluminum alloy. The C4 Magnum LED Glo-Black lamp will survive the toughest, wettest, and most severe work environments. | |

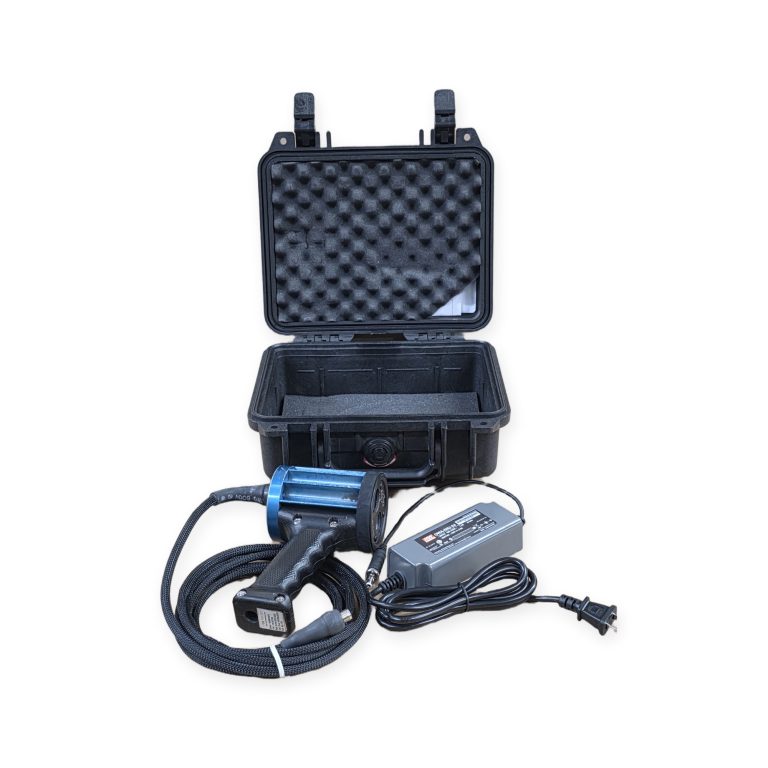

 | C4 Magnum-GO Glo-Black LED UV-A Inspection LampThe REL LED C4 Magnum-GO integrates both UV-A and white light emitters. The Magnum-GO utilizes the latest in safe high output LED technology. This ergonomically designed inspection lamp is a highly maneuverable lightweight solution that maximizes operator safety and efficiency. The C4 Magnum-GO is designed for all intensity requirements of Fluorescent Penetrant Inspection (FPI) and Magnetic Particle Inspection (MPI). REL’s C4 Magnum-GO inspection lamps contain high flux UV-A and white light LED emitters with built-in static-electric discharge circuits. The C4 Magnum-GO provides a 9-inch diameter of UV-A intensity >1000 μW/cm² at 15 inches. The integral filter in the UV-A emitter limits the visible light to 20 lux (1.86 foot-candles) at 15 inches and 5 lux (0.47 foot-candles) at 36 inches. The LED white light provides an intensity > 700 foot-candles at 15 inches. The lamp’s electrical components are sealed and passively cooled within an engineered finned housing manufactured from military grade aluminum. The lamp performs in all environments regardless of ambient conditions. The C4 Magnum-GO LED UV-A with white light will survive the toughest, wettest, and most severe work environments. | |
 | ||
 | ||
 | C4 Nomad Glo-Black LED UV-A Inspection LampThe REL Model C4 Nomad Glo-Black LED UV-A Inspection Lamp utilizes the latest in safe high output UV-A LED technology. This black light is a highly maneuverable lightweight solution that maximizes operator safety and time on task. The C4 Nomad contains 4 high flux-UV LED emitters that have a built in static-electric discharge circuit to allow the lamp to perform in all environments regardless of ambient conditions. The C4 Nomad is designed for all intensity requirements of Fluorescent Penetrant Inspection (FPI) and Magnetic Particle Inspection (MPI). The C4 Nomad provides a 9-inch diameter of UV-A intensity above 1000 μW/cm2 at 15 inches. The integral filter in the C4 Nomad limits the visible light to 20 lux at 15 inches and 5 lux at 36 inches. The C4 Nomad lamp is sealed and cooled with an engineered finned housing. It is manufactured from a military grade aluminum alloy. The C4 Nomad Glo-Black lamp will survive the toughest, wettest, and most severe work environments on the planet! The C4 Nomad is our rechargeable UV-A LED inspection lamp. It comes with two batteries, so you are always ready to go. | |
 | C4 Nomad-GO Glo-Black LED UV-A Inspection LampThe REL LED C4 Nomad-GO integrates both UV-A and white light emitters. The cordless Nomad-GO provides a highly maneuverable lightweight solution that allows operator flexibility with a rechargeable 18V battery. The Nomad-GO includes two 1.5 Amp batteries to enable continuous use in either UV-A or white light. The C4 Nomad-GO is designed for all intensity requirements of Fluorescent Penetrant Inspection (FPI) and Magnetic Particle Inspection (MPI). REL’s C4 Nomad-GO inspection lamp contains high flux LED UV-A and white light emitters with built-in static-electric discharge circuit. The C4 Nomad-GO provides a 9-inch diameter of UV-A intensity > 1000 μW/cm² at 15 inches. The integral filter in the UV-A emitter limits the visible light at 20 lux (1.86 foot-candles) at 15 inches and 5 lux (0.47 foot-candles) at 36 inches. The LED white light provides an intensity > 700 foot-candles at 15 inches. The lamp’s electrical components are sealed and passively cooled within an engineered finned housing manufactured from military grade aluminum. This allows the lamp to perform in the harshest environments. | |
 | Liquid Stylus LED UV-A Lamp, corded with Stylus Holder. Kit includes 2-Meter Light Guide (UV-2120DH); 120/240V, 60W Power Supply (UV-2023); Bolt on Power Cord for Magnum; Swivel Mount Lamp Holder (UV-4010); all in a Tool Control System. Additional Information
| |

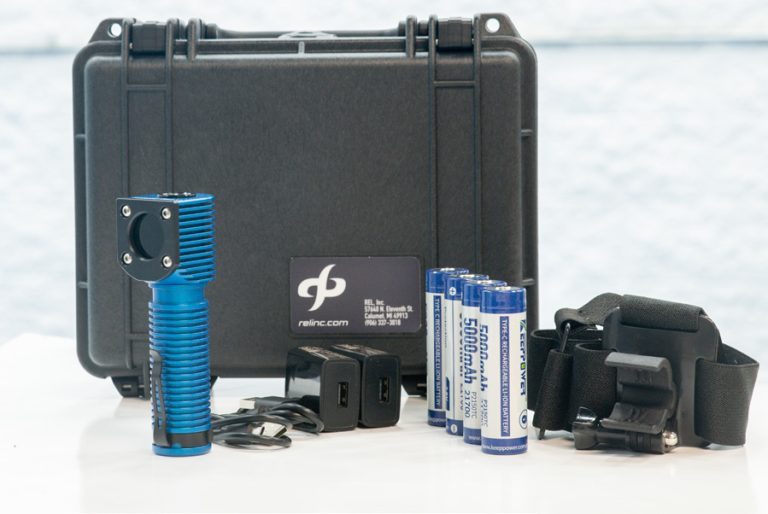

 | C4 Magnum Glo-Black LED UV-A Inspection LampThe Nomad-Ascent is the highest power density lamp in the LED UV-A inspection market. This lamp delivers a powerful uniform beam pattern from a compact rugged machined housing of military grade aluminum. The Nomad-Ascent features a solid-state switch along with fluoroelastomer sealed interfaces to deliver a punch way above its weight class. 5 Year Warranty Features: |
