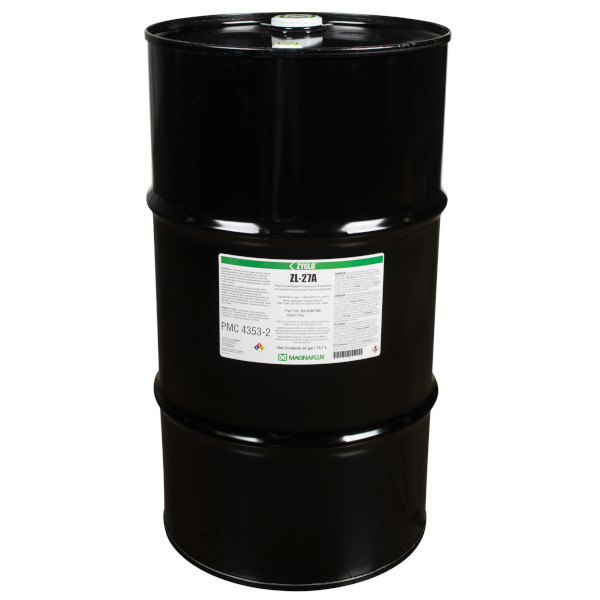

Magnaflux ZL-27A

Magnaflux ZL-27A


Container Size & Part Number

1 Gallon 01-3187-35
5 Gallon 01-3187-40
20 Gallon 01-3187-30
55 Gallon 01-3187-45

Product Data Sheet
Safety Data Sheet


Level 3 Post Emulsifiable Fluorescent Penetrant

Post-emulsifiable ZL-27A is a Level 3, high-sensitivity Type 1 penetrant designed for inspections which require maximum process control and reliability, such as safety-critical aerospace testing.

Since ZL-27A is not water soluble, there is minimal risk of this penetrant being removed from a fine or shallow defect through over-washing to provide the highest reliability of any penetrant inspection method.

ZL-27A has a high flash point and provides long tank life when used in open dip tanks, but this penetrant can also be applied in a variety of other ways, including electrostatic spray.

To remove surface ZL-27A penetrant before developer application, use ZE-4E Method B lipophilic emulsifier or ZR-10E Method D hydrophilic emulsifier can be used.

ZL-27A is listed on the QPL SAE AMS 2644 Qualified Product List and is approved for use by Pratt & Whitney.


Level 3 high sensitivity

Post emulsifiable

Bright indications

Resists over-washing or over-removal

High flash point

Wide range of application methods

Low odor

Very low toxicity

Alloy compatibility

High thermal resistance

High UV stability

QPL SAE AMS 2644 Qualified Product List

Approved for use by Pratt & Whitney

Additional information
Weight N/A
Dimensions N/A

5 Gallon, 20 Gallon, 55 Gallon
